2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
  • 2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
  • 2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
  • 2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
  • 2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
  • 2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
  • 2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist
2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist

2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist

Menşe yeri Çin
Marka adı Hopda
Sertifika ISO,CE
Model numarası 1600, 1+5
Ürün Ayrıntıları
Tek tel çapı (yumuşak iletken):
10-20mm
Tek tel çapı (sert):
3,5-8 mm
Max. Maks. OD OD:
70 mm
Bükme Sahası:
60-1500mm
Max. Maks. Rotation Speed Dönme hızı:
250 devir/dakika (3B)
Çekiş Hızı:
120m/dak
Güç:
90 kw
sarma bobini:
PN2500
Kafesteki ödeme bobini:
PN1600
Merkez yüksekliği:
1000 mm
Vurgulamak:

2000mm Drum Twister Cabling Machine

,

Security Wire Drum Twister Cabling Machine

,

1+6 Mechanical Drum Twister Cabling Machine

Ödeme ve Nakliye Şartları
Min sipariş miktarı
1 takım (Bükümlü ana bilgisayar ayrı olarak sipariş edilebilir)
Fiyat
pazarlık edilebilir
Ambalaj bilgileri
İhracat için konteynerde denize uygun ambalaj
Teslim süresi
stok yoksa 30-60 takvim günü
Ödeme koşulları
T/T,L/C
Yetenek temini
ayda 5 takım
Ürün Tanımı
Description and application:
Compared to the traditional cradles type cabling machine, our bow type laying up machine has greater productivity. It can strand soft structure cables including control cables, ACSR overhead cables, power cables, and bare copper, aluminum, and aluminum alloy wires with up to 7 cores. You can choose the back - twist function as per your requirements. The machine can be driven either independently or by a ground shaft.​

Features:​
  • The user - friendly human - machine interface makes operation easy and monitoring thorough.​
  • Automatic pitch adjustment is realized through the use of PLC.​
  • A back - twist mode with a maximum of 100% can be installed.​
  • There are independent drive and ground shaft drive options.​
  • AC induction servo motors are used for reliable and energy - efficient operation.

Specification:




Payoff bobbin(mm)

Max. rotation speed

(r/min)

Single wire diameter

(mm)



Pitch

(mm)



Max. OD(mm)



Power(KW)



Caterpillar(kg)





Take-up



Central height(mm)

 Length * width(m)
3B 4B 5B 6B Soft conductor Hard conductor
Ø1000 430 400 370 350 Ø8～Ø15 Ø3.0～Ø6.0 90-1400 24 37 1600 PN1600 1000 50×6
Ø1250 330 288 270 250 Ø8～Ø15 Ø3.0～Ø6.0 48-1500 60 55 2000 PN2000 1000 55×6
Ø1600 250 220 200 180 Ø10～Ø20 Ø3.5～Ø8.0 60-1500 70 90 2000 PN2500 1000 60×7





Main components:
  1. Central pay-off stand
  2. Wire guiding stand
  3. Stranding host
  4. Filer payoff stand (Optional)
  5. Assembling die holder
  6. Central taping machine
  7. Armouring machine
  8. Meter counter
  9. Capstan/Hual-off/Caterpillar
  10. Take up with traversing
  11. Control system
  12. Transmission system
  13. Wearing parts

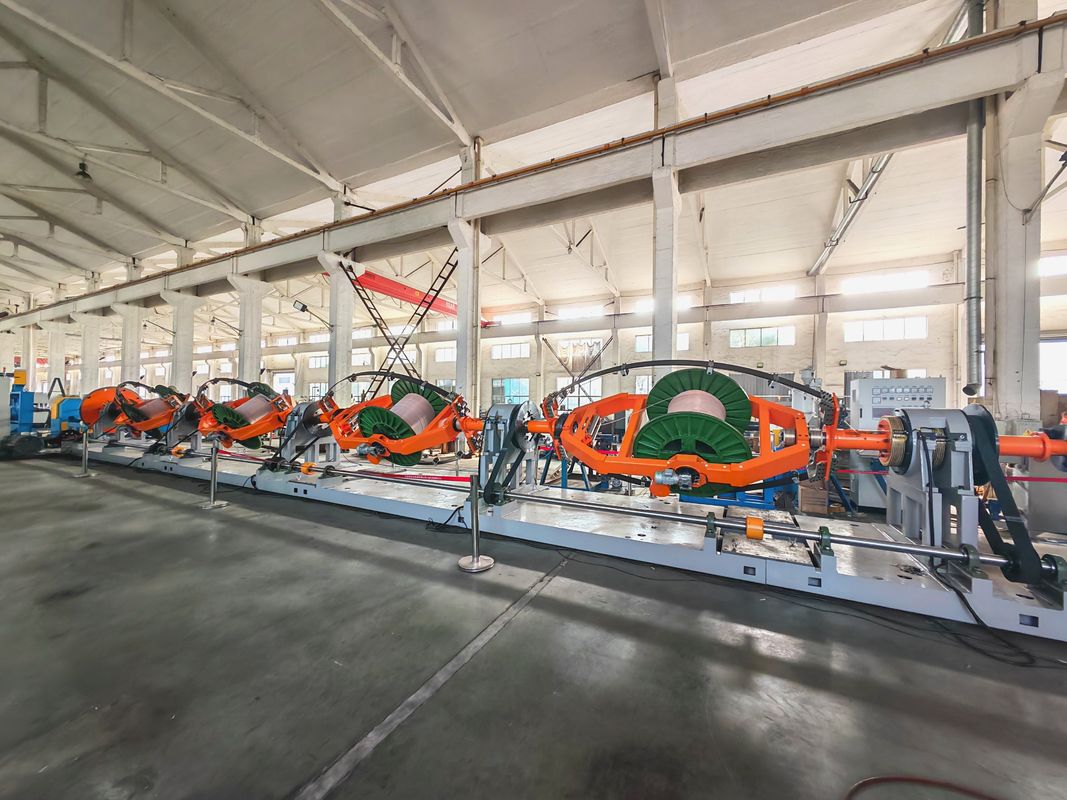

Product images:
2000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 02000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 12000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 22000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 32000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 42000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 52000mm 1+6 Mechanical different linkage drum twister cabling machine for security wire untwist 6
